AIS-Sim - the Simulator for AIS and NMEA testing.

Simulate HS-NMEA with embedded AIS Messages, analyse incoming AIS messages and display them on a RADAR like display.

AIS-Sim Features:
* NMEA 0183 version 3.00 and NMEA 0183-HS ver 1
* AIS Specification ITU-R M. 1371-1 / IEC 61993-2
* Uses NMEA parser technology proven in RECSIM, ESL's previous simulator
* Up to 5 custom parser sentence groups with separate repetition rates
* RECSIM compatible track files and Autopilot simulation
* Optional output and input logging to files, with playback facility
* COM ports 1-15 up to HS-NMEA 38400 baud and beyond

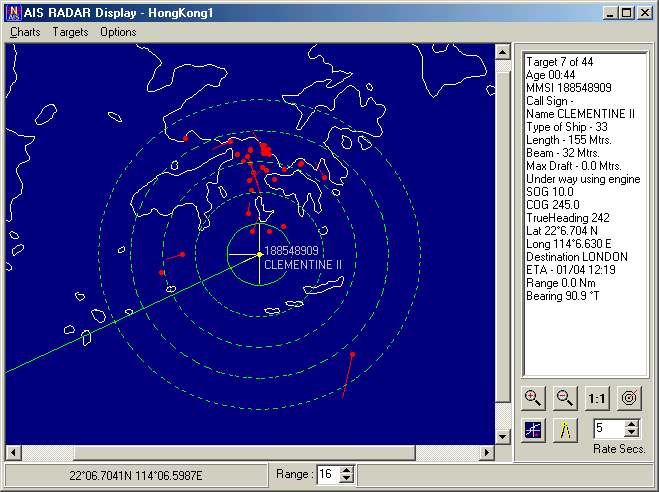

* RADAR display window with optional background vector cartography
* Track up to 60 simultaneous targets
* Centre display on own vessel or any selected target
* Virtual Loopback mode for local simulator monitoring

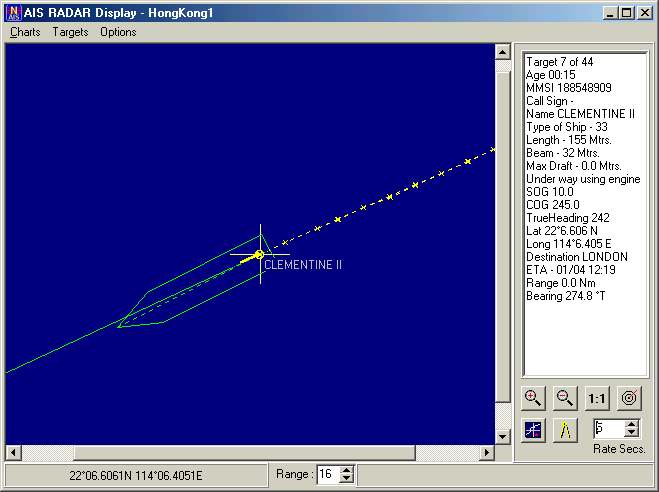

Zoom in on a target and view the vessel plan relative to the antenna position.

Download AIS-Sim Demo

Download the AIS-Sim manual (PDF)

Download the AIS-Sim Help file for a detailed overview

For latest pricing, or to purchase this package, please contact us.
